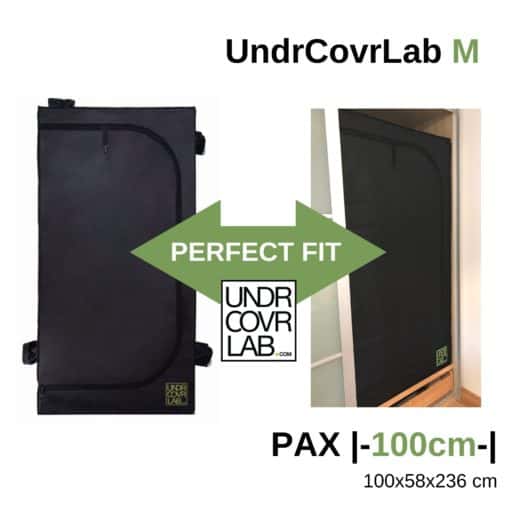

Stealth Grow Box – UndrCovrLab M turns your IKEA PAX into a “PAX Closet Grow Box”
✅ DETAILS MAKE THE DIFFERENCE: UndrCovrLab M not only has perfect external dimensions to fit in your PAX wardrobe, but we also have very high standards and user wishes in the design and quality of our grow tents. We have already reached version 4 and have continued to develop our grow boxes.
✅ GROW TENT MEASUREMENTS: 92cm width, 54cm depth, 189cm height (INCH MEASUREMENTS width 29½ inch, depth 22⅞ inch, height 74 ⅖ inch ). This allows the 92x54x189cm UndrCovrLab M to fit into the 100x58x201cm PAX frame without removing the door hinges. Note: All our grow tents stand on their own and fitting into a cabinet is optional). At 189cm high, there is some room to the top and the 201cm cabinet is fully lined to the ceiling. In the PAX 100x58x236cm there is mathematically 37cm air space left. Note: A PAX shelf is 1.8cm thick and has a max. load of 20kg. Optionally, the tent can also be placed on a cupboard board to provide additional space for equipment under the tent. Here there is room for ideas with the sound-insulated exhaust air to the top. Remember the max. load especially when growing with hydroponic accessories with water etc. All at your own risk but possible.
✅ EXHAUST OUTLET: Three ducting flanges with 150mm diameter (6 inches). These are well placed so that exhaust air can be discharged from the roof or from the rear wall or side. This can be done very economically and diagonally to the air inlet by positioning the ø150mm air outlets. Exhaust air set variants with a diameter of up to 150 mm now also fit and the exhaust air can be discharged either through the roof or from the rear wall.
✅ FRESH AIR INLET: With 125mm (5 inches) diameter on the sides and in the rear wall is positioned at the optimum height at 30cm (12 inches) above the floor. If the tent is installed in your wardrobe the mesh window on the back serves as an air inlet. For this, you either remove the entire back wall or cut suitable holes with a hole saw or else. Alternatively or additionally, the cabinet side can be drilled for further supply air with a hole saw.
✅ EXTRA STRONG TARP: We have the thickest tarpaulins made of 600D oxford polyester fabric with a glossy-white finished coating on the inside. Highest quality and best suitable for LED grow lamps. Odors are also better retained by the extra thickness of tarpaulin, heat is absorbed and the quality speaks for longevity.

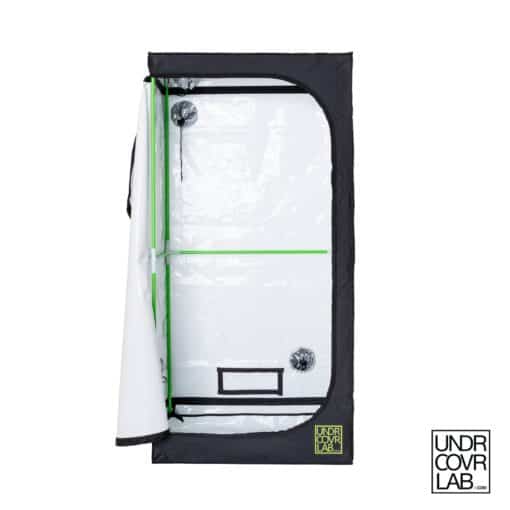

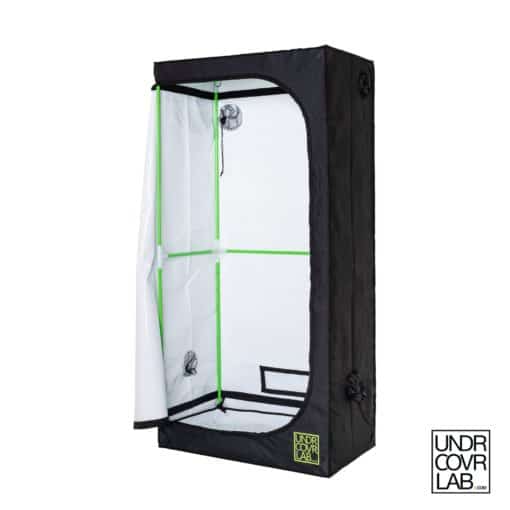

✅ WHITE INSIDE COATING: UndrCovrLabs are equipped with a so-called glossy white inner coating. This ensures very high PAR reflectance values with additional benefits for the plants. Plant-friendly climate, because the glossy white film diffuses light and absorbs the heat of the lamps better than silver coating. Especially in relatively small spaces a point not to be underestimated.
✅ TENT STRUCTURES WITH CROSS STRUCTURES: The new cross struts bring several advantages: With high negative pressure from the exhaust air, the tent canvas is held back and your plants are left with room to grow. The three struts are also ideal for mounting recirculation fans, hygrometers, lights, or a water bag for AutoPots. The poles can also be used as a base for a modified cabinet board/floor, so the tent can be converted into a two-tier grow box with doubled floor space in no time.
✅ THE ZIP: Smooth and quiet zipper with an internal slat. This prevents even the smallest light leakage and makes the UndrCovrLab grow tents 100% light-proof.
✅ PROCESSING QUALITY: Highest standards for all materials. An industry-grade and the quiet zipper is there as a matter of course. You don’t want this to break during flower season. Functional and stable frame as a plug-in system without click connectors, because they can rust. The corners of the tent canvas are reinforced with tarpaulin material and double-stitched as well as the thickest material you can find on the market.
PRODUCT UPDATE 2022: UndrCovrLab M – Version 4
With all that above mentioned we still thrive to improve and hear our community of home growers. The latest features we have implemented to UndrCovrLab M V4.
✅ ENLARGED EXHAUST OPENINGS: In the roof and on the upper back – now with 150mm (6inch) diameter (previously ø125mm (5inch)). This makes it easier to install larger grow exhaust sets and phonic traps, and soundproof exhaust hoses and ensures an even quieter operation of the airflow.
✅ IMPROVED AERATION WINDOW: The window with a fly screen which can be closed continuously with velcro, can now be opened and closed inwards. Thus, a suitable opening can be sawed or cut into the cabinet wall and the window is much better used as a fresh air supply from the inside of the tent.
PRODUCT DATA OF UndrCovrLab M – V4

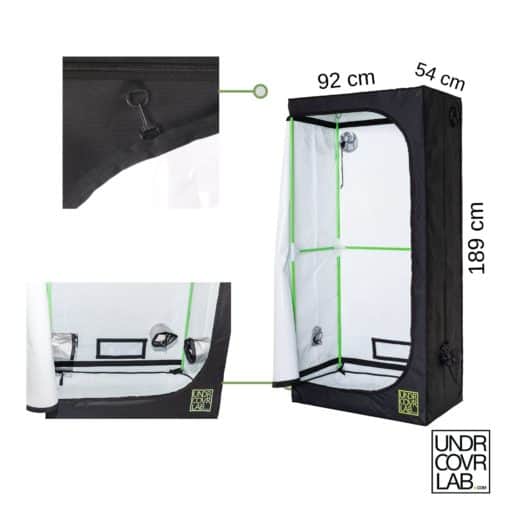

- MEASUREMENTS: 92x54x189 cm (Breite x Tiefe x Höhe)
- GROUND SPACE: 0,50 m²
- GROW SPACE: 0,94 m³

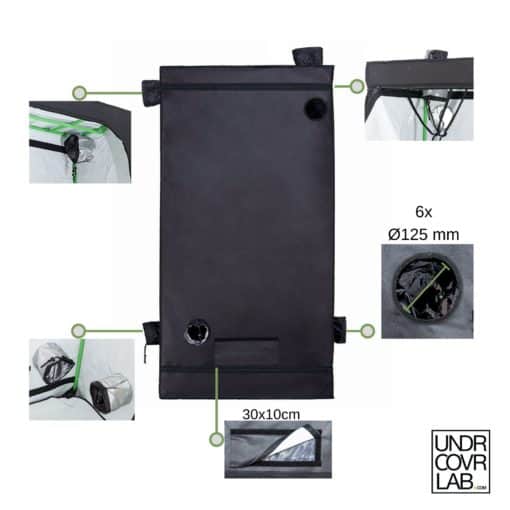

- DUCTING FLANGE: Outlet 3 x ∅150mm and 3 x ø125mm (inlet)

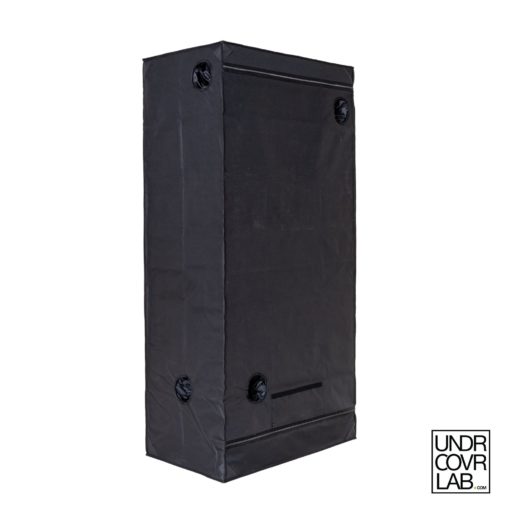

- Window on the back in size 30x10cm with fly screen, by velcro closable from the inside.
- The door on the front, opens to the left and can be attached to the outside with a hook.
- Stable frame with up to 30kg/66 lbs permanent load at the roof.
- Cross braces halfway up the tent.
- Waterproof insert floor with fastening loops at 10cm (4 inches) height.
SCOPE OF DELIVERY:
- 19 green powder-coated tent poles ∅16mm diameter
- 4 equipment poles ∅16mm diameter
- 12 plastic corner connectors
- 1 tent canvas in 600D oxford quality and glossy white inner coating
- 1 waterproof tray 10cm high
- 2 nylon tension straps for activated carbon filter and fan
- Assembly instructions
- Weight: approx. 10 kg
